ASTM B163 Incoloy 825 Extruded Fin Tube For Heat Exchanger

Brand Name : YuHong

Model Number : ASTM B163 N08825

Certification : ISO, ABS, BV, ISO, ASTM, SGS

Place of Origin : China

MOQ : 200~500 KGS

Price : Negotiable

Payment Terms : T/T,L/C AT SIGHT

Supply Ability : According to Clients' requirements

Delivery Time : 35-60 Days (Depend on Customer's Requirements)

Packaging Details : Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps

Product Name : Extruded Finned Tube

Base Tube Specification&Material : ASTM B163 N08825

Fin material : AL-1060

Fin Height : ＜17mm

Fin Thickness : 0.2~0.4mm

Base Tube OD : 8~51mm

Fin Pitch : 1.6~10mm

Application : Chemical Processing, Oil Refineries, Power Generation

Contact Now

ASTM B163 N08825 Extruded Fin Tube Manufacturers With AL1060 Fins For Oil Refineries
Attribute Value
Product Name Extruded Finned Tube
Base Tube Specification & Material ASTM B163 N08825
Fin material AL-1060
Fin Height ＜17mm
Fin Thickness 0.2~0.4mm
Base Tube OD 8~51mm
Fin Pitch 1.6~10mm
Application Chemical Processing, Oil Refineries, Power Generation
ASTM B163 N08825 Extruded Finned Tube With AL1060 Fins
Product Overview
ASTM B163 N08825 Extruded Finned Tubes with Aluminum Fins are high-performance heat transfer components constructed from Inconel 825 alloy and aluminum. These tubes feature extruded aluminum fins permanently bonded to the exterior surface, significantly increasing heat transfer area while providing exceptional corrosion and heat resistance.
Key Advantages
  • Enhanced Heat Transfer Efficiency: Increased surface area improves heat exchange performance
  • Superior Corrosion Resistance: Inconel 825 alloy withstands highly corrosive environments
  • High Temperature Capability: Ideal for demanding applications in extreme conditions
  • Low Maintenance Design: Aluminum fins resist damage and corrosion
  • Extended Service Life: Durable construction ensures long-term reliability
  • Energy Efficient: Optimized heat transfer reduces operational costs
Technical Specifications
Chemical Composition: Nickel (38-46%), Chromium (19.5-23.5%), Iron (22-28%), Molybdenum (2.5-3.5%), Copper (1.5-3%)
Mechanical Properties: Tensile Strength: 585 MPa min, Yield Strength: 240 MPa min, Elongation: 30% min
Fin Material: AL-1060 aluminum alloy with excellent corrosion resistance
Industrial Applications
These finned tubes are engineered for critical heat transfer applications in demanding environments:
  • Chemical processing plants requiring high-temperature and high-pressure operations
  • Oil refineries and gas processing facilities
  • Power generation plants and steam systems
  • Petrochemical processing equipment
  • HVAC and refrigeration systems
  • Aerospace thermal management applications
ASTM B163 Incoloy 825 Extruded Fin Tube For Heat Exchanger

Product Tags:

N08825 finned aluminum extrusions



AL1060 finned aluminum extrusions



ASTM B163 stainless steel finned tube


China ASTM B163 Incoloy 825 Extruded Fin Tube For Heat Exchanger wholesale

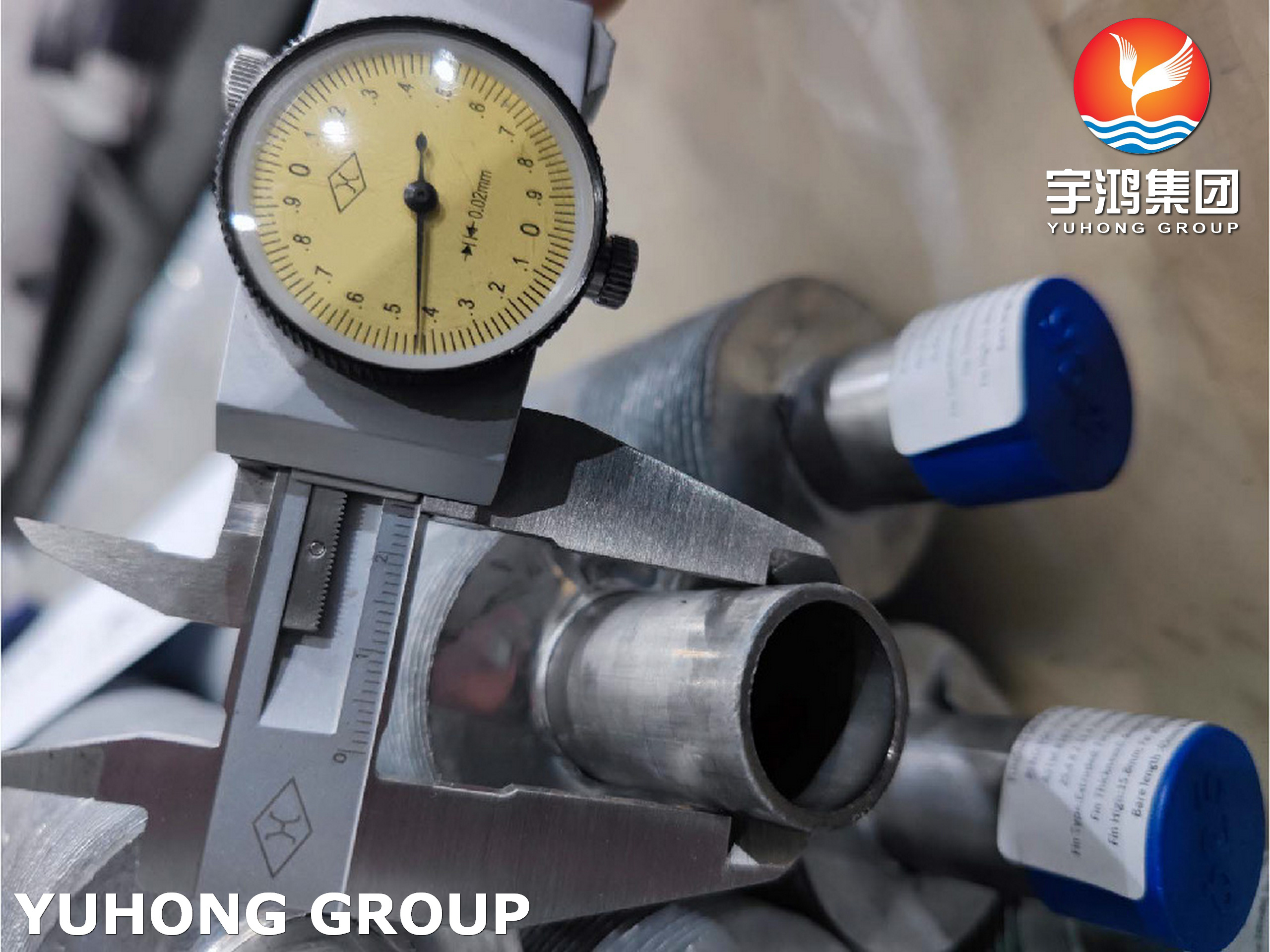

ASTM B163 Incoloy 825 Extruded Fin Tube For Heat Exchanger Images
